UPVC/CPVC Dvostruka ekstruzija, linija za ekstruziju s četiri niti
UPVC/CPVC Dvostruka ekstruzija, linija za ekstruziju s četiri niti
UPVC/CPVC Dvostruka ekstruzija, linija za ekstruziju s četiri niti
UPVC/CPVC Dvostruka ekstruzija, linija za ekstruziju s četiri niti

UPVC/CPVC Dvostruka ekstruzija, linija za ekstruziju s četiri niti


Mjesto podrijetla:Kina
Brand Name:jwell
Certifikacija:ISO CE UL TUV
Konkurentska prednost:
Visoka kvaliteta, veliki kapacitet, visoka stabilnost, svjetska postprodajna usluga, više od 30 godina iskustva u razvoju
Dodaj u košaricu
Aplikacije

Widely used in agricultural water supply and drainage, construction water supply and drainage, cable laying and other aspects,PVC plastic pipe because of its characteristics, widely used in oil field crude oil gathering and transportation, chemical use of temperature and corrosion resistant pipeline, hot water water supply and drainage pipeline, directly buried high and ultra high voltage power transmission, cable pipe protection and other fields.

Opis

In the production of small diameter pipe and requirements under the condition of  high output, especially shows the advantages of using dual-strand extrusion. The characteristics of  our dual-strand downstream equipment is with two sets of independent control circuit, the speed of each pipeline can be adjusted respectively, and can even produce different diameter of the pipe at the same time.
Four strand extrusion line is suitable for the ≦32 mm pipe with high-speed production, unilateral pipe speed up to 25 m/min.
This extrusion line adopts special screw and mould design, materials uniform plasticizing, fast production speed, low energy consumption. Control is easy to operate, reduce the technical requirements of the operation of operating workers. And effectively save the workshop space.

Tehnički podaci
TipSpecifikacija cijevi (mm) Max. output (kg/h) Ukupna snaga (kw)
JWG-PVC32(Four out)Ø20~Ø32250~300104
JWG-PVC63(Two out)Ø20~Ø63250~300105
JWG-PVC110(Two out)Ø50~Ø110300~400145

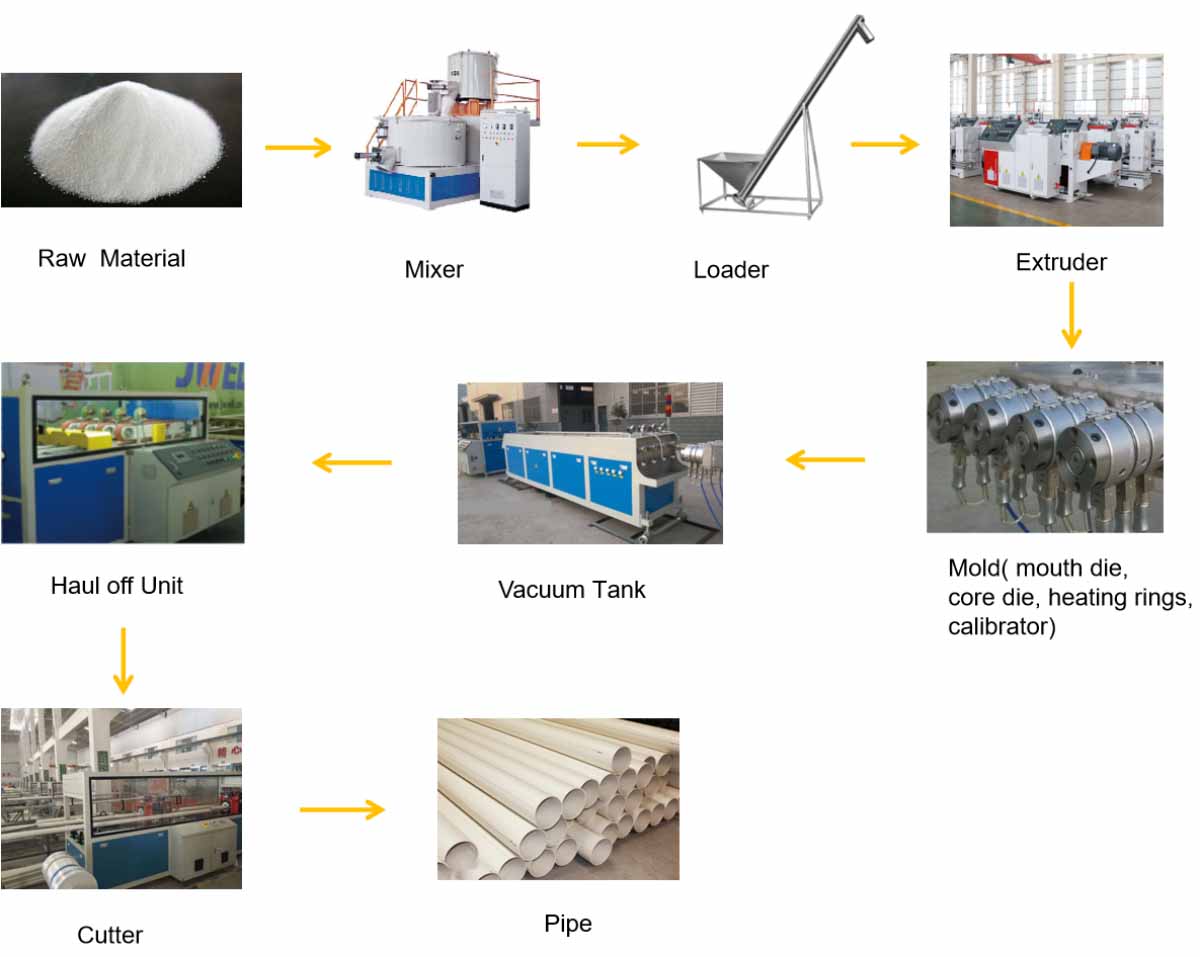

Koraci procesa
