Teška drobilica serije DYPS-Z tvrtke JWELL
Teška drobilica serije DYPS-Z tvrtke JWELL
Teška drobilica serije DYPS-Z tvrtke JWELL
Teška drobilica serije DYPS-Z tvrtke JWELL

Teška drobilica serije DYPS-Z tvrtke JWELL


Mjesto podrijetla:Kina
Brand Name:jwell
Certifikacija:ISO CE UL TUV
Konkurentska prednost:
Visoka kvaliteta, veliki kapacitet, visoka stabilnost, svjetska postprodajna usluga, više od 30 godina iskustva u razvoju
Dodaj u košaricu
Aplikacije

The DYPS-Z series heavy crusher is specially designed to meet the demanding requirements and the recycled material that is not easily crushed, and the thickness is between 3~30m.

Opis

Cabinet: The main box adopts solid welded steel structure, precision machining by CNC machine tool. It has the characteristics of large thickness, high strength, strong wear resistance, no pollution and long service life. Equipped with exquisite buckle, fastening durable, scientific design, easy to lift pressure, the upper box can be easily opened, hydraulic device, convenient maintenance.
Spindle: Made of high quality steel, dynamic and static balance, not easy to deform when working, stable working state. Adopting the latest "V" cutting technology, according to the different grinding materials, the rotor can be processed into different quantities. Make the blade in the work to achieve uniform cutting, energy saving and emission reduction, reduce noise.

Tehnički podaci
MODELVELIČINA USTA ZA HRANJE
(MM)
SNAGA GLAVNOG MOTORA
(KW)
KOLIČINA POKRETNOG NOŽA
     (PIS)
FIKSNA KOLIČINA NOŽ
(PIS)
PROMJER ROTORA
(MM)
IZLAZ (KG/H)
DYPS-Z 800800 * 80037-756 / 104Ф600600
DYPS-Z 10001000 * 100055-11010 / 144 / 6Ф700800
DYPS-Z 12001200 * 100090-13210 / 14 / 184 / 6Ф8001000
DYPS-Z 15001500 * 1000110-20014 / 184 / 6Ф10001200

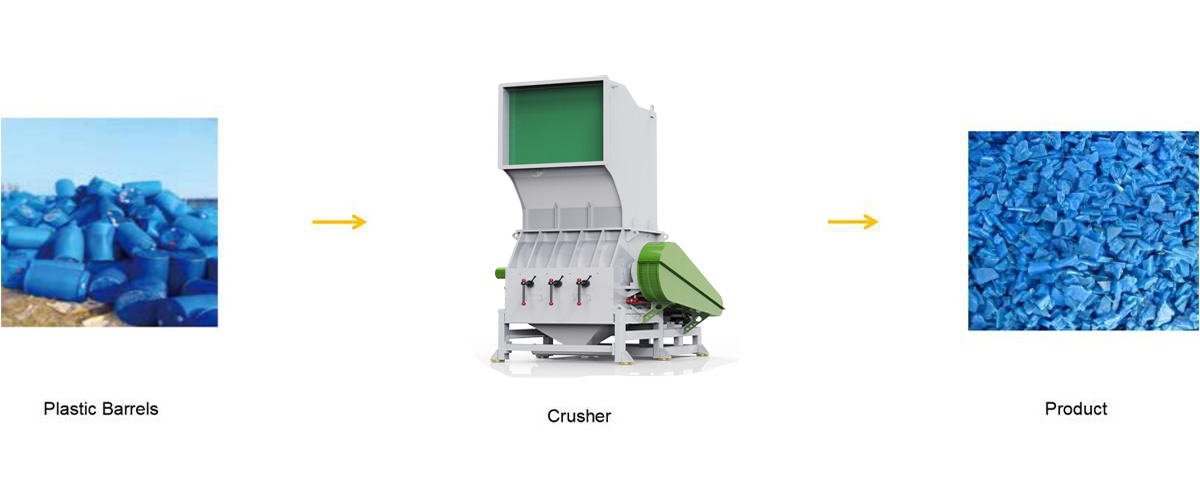

Koraci procesa

napredak(1)-1

Pošiljke

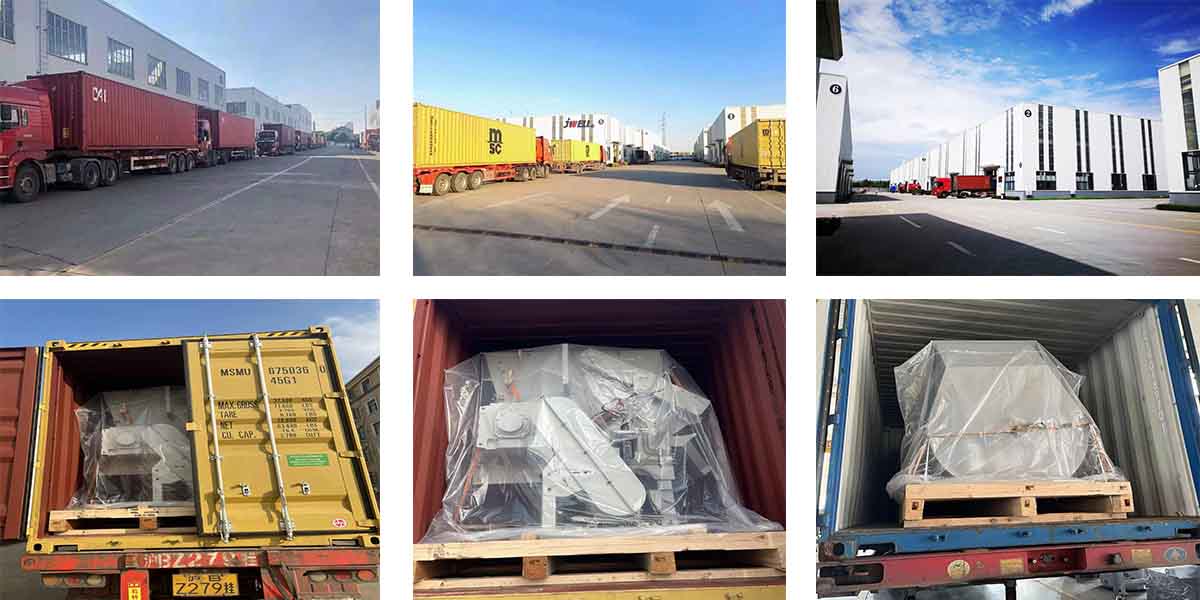

pakiranje

Razmotati
