Jwell DYSSG Jedinica za drobljenje i usitnjavanje cijevi
Jwell DYSSG Jedinica za drobljenje i usitnjavanje cijevi
Jwell DYSSG Jedinica za drobljenje i usitnjavanje cijevi
Jwell DYSSG Jedinica za drobljenje i usitnjavanje cijevi
Jwell DYSSG Jedinica za drobljenje i usitnjavanje cijevi

Jwell DYSSG Jedinica za drobljenje i usitnjavanje cijevi


Mjesto podrijetla:Kina
Brand Name:jwell
Certifikacija:ISO CE UL TUV
Konkurentska prednost:
Visoka kvaliteta, veliki kapacitet, visoka stabilnost, svjetska postprodajna usluga, više od 30 godina iskustva u razvoju
Dodaj u košaricu
Aplikacije

DYSSG shredder can be used to shred the PE, PP, PVC pipe with a diameter of 1600MM, and pipes with a length of 3-6M can be directly shredded without cutting, and the speed is slow and stable.

Opis

All kinds of pipe directly shred,without splitting, put the pipe into the horizontal feeding groove, feeding groove automatically closed, the pipe is pushed to the center of the shaft, through hydraulic propulsion crushing.  After crushing the material through the conveyor belt into the crusher for secondary crushing, to complete the required crushing particle size.  The material can be fully and effectively finely crushed in the crushing chamber, with high output, low energy consumption, high efficiency and uniform discharge finely crushed.  And in the use of the equipment, low noise, no pollution, simple operation, convenient maintenance.  The whole system is controlled by PLC centralized control system.

Tehnički podaci
MODELMAX. SHREDDER PIPE
(DIAMETER MM)
POGONSKA SNAGA
(KW)
MECHANICAL PUSHER POWER     (KW)IZLAZ
(KG/H)
ZAMJERNI ZAMJER ROTORA
(MM)
BRZINA ROTORA (RPM)
DYSSG- 6306302 * 3011800-1000Ф84839
DYSSG- 8008002 * 37111000-1200Ф102833
DYSSG- 100010002 * 45151200-1500Ф125827
DYSSG- 120012002 * 55151500-2000Ф147823
DYSSG- 160016002 * 110151800-2500Ф196825

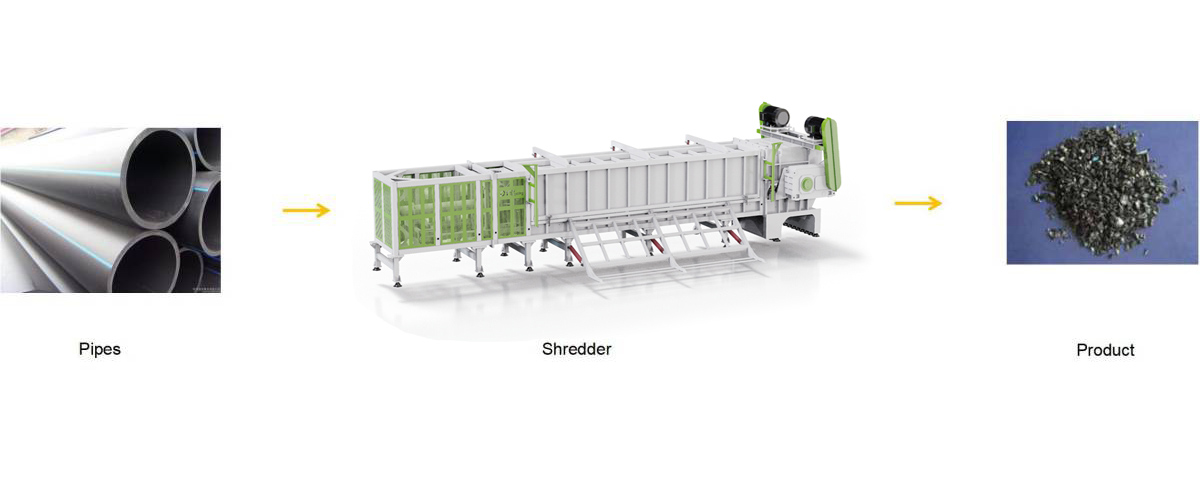

Koraci procesa

napredak(1)-1

Pošiljke

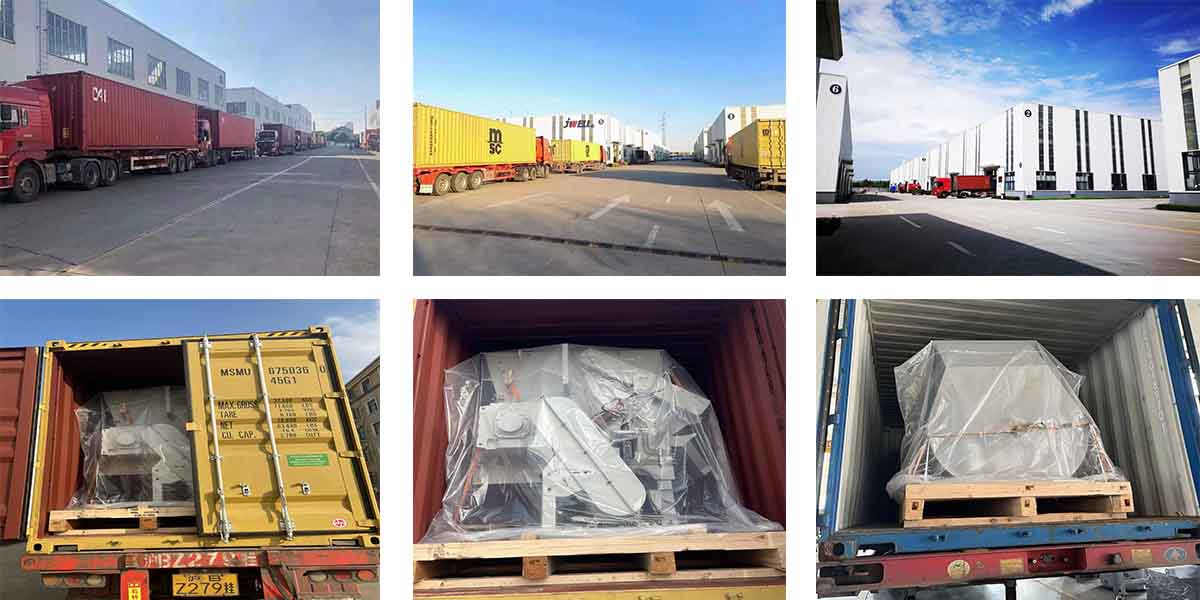

pakiranje

Razmotati
