JWELL PVC PP PE PC ABS Linija za ekstruziju malih profila
JWELL PVC PP PE PC ABS Linija za ekstruziju malih profila
JWELL PVC PP PE PC ABS Linija za ekstruziju malih profila
JWELL PVC PP PE PC ABS Linija za ekstruziju malih profila

JWELL PVC PP PE PC ABS Linija za ekstruziju malih profila


Mjesto podrijetla: Kina
Brand Name: jwell
Certifikacija: ISO CE UL TUV
Konkurentska prednost:
Visoka kvaliteta, veliki kapacitet, visoka stabilnost, svjetska postprodajna usluga, više od 30 godina iskustva u razvoju
Dodaj u košaricu
Aplikacije

Widely used in household appliances, automotive, chemical, construction, light industry and other fields.

Opis

The company has absorbed advanced technology at home and abroad, and successfully developed a small-scale material production line that suits the needs of users. The production line can select single screw or double rod screw extruders of different specifications according to different profile sections and molds, and be equipped with corresponding auxiliary equipment such as vacuum setting table, haul off unit, cutter, stacker and so on.The main extruder adopts imported AC drive for speed regulation, and the temperature control instrument adopts Japanese OMRON products.Both the vacuum pump and the traction motor adopt high-quality products.

Advantages of line: good plasticization,high output capacity,low power consumption and etc.

Tehnički podaci
Model YF108 YF108 YF180 YF240 YF300
Max width(mm) 108 108 180 240 300
Model ekstrudera JWS45 JWS50 JWS65 JWS90 JWS120
Snaga (kW) 15 / 11
22 / 18.5 30 / 22 55 / 45 90 / 75
Voda za hlađenje (m3/ H) 4 4 5 7 7
Komprimirani zrak (m3/ Min) 0.5 0.6 0.6 0.6 0.6

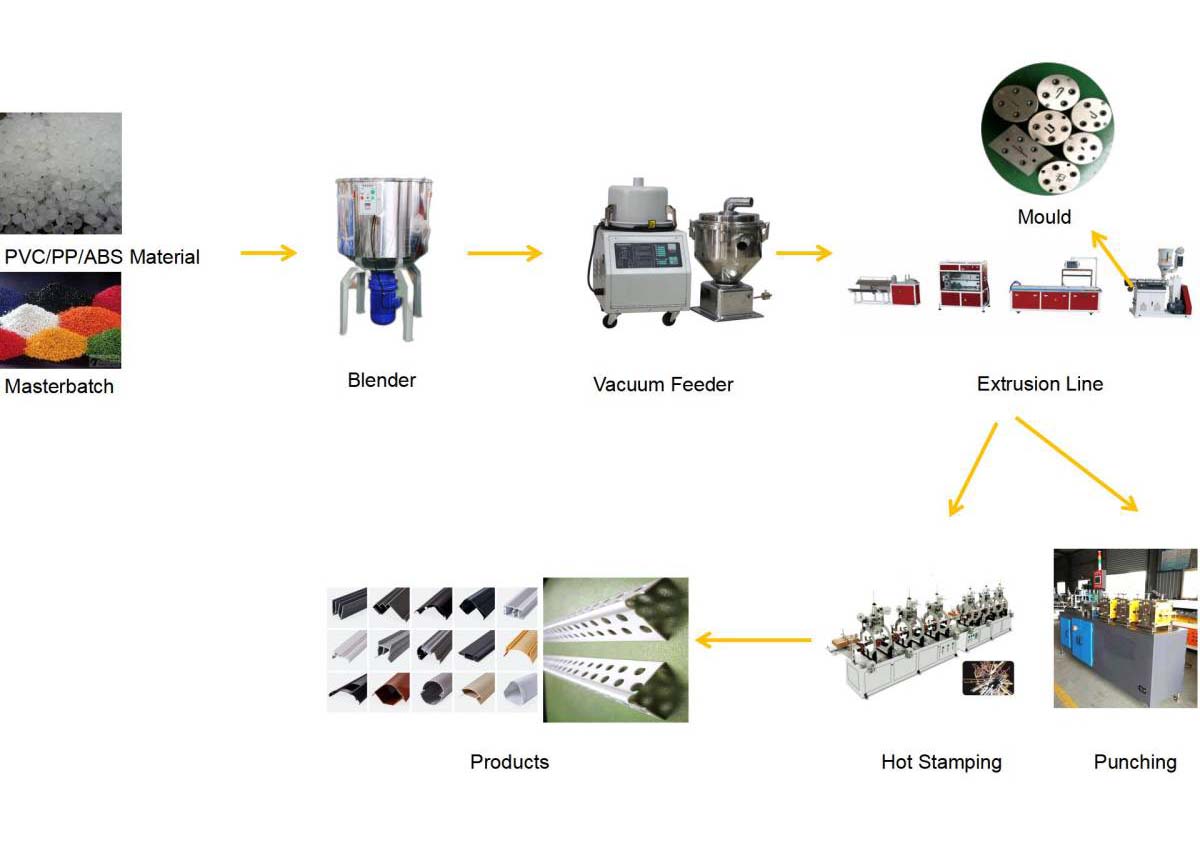

Koraci procesa

napredak-1

Pošiljke

pakiranje

Razmotati
