JWT serija PET stroj za peletiranje s jednim vijkom
JWT serija PET stroj za peletiranje s jednim vijkom
JWT serija PET stroj za peletiranje s jednim vijkom
JWT serija PET stroj za peletiranje s jednim vijkom

JWT serija PET stroj za peletiranje s jednim vijkom


Mjesto podrijetla:Kina
Brand Name:jwell
Certifikacija:ISO CE UL TUV
Konkurentska prednost:
Visoka kvaliteta, veliki kapacitet, visoka stabilnost, svjetska postprodajna usluga, više od 30 godina iskustva u razvoju
Dodaj u košaricu
Aplikacije

This series of production unit is mainly suitable for PET bottle flake granulation.

Opis

The screw adopts LTM low temperature mixing element, nitrided and hard chromium plating on the surface of the screw barrel, the main machine is equipped with vacuuming device, the outer casing is made of heat preservation cover structure, and the host adopts a heat preservation cover energy-saving structure, with coarse filter measuring head. Equipped with booster pump system and vertical sleeve cylinder double filter chamber. The mold adopts plate hanger type, the inner flow channel is formed by the machining center, the processing precision is high, the material flow speed is uniform, the motor directly drives the spindle, without the reducer transmission, the equipment in the process of operation has the characteristics of low noise, high efficiency, low failure rate, low production cost.

Tehnički podaci
MODELDIREKTOR ZA VUČENJE  (MM)L/DBRZINA VEZENA
(o/min)
SNAGA GLAVNOG MOTORA
(KW)
IZLAZ
(KG/H)
JWT909030 / 1
20-10040-55100-200
JWT13013030 / 1
20-8075-90200-350
JWT16016030 / 1
20-80110-132450-600
JWT19019030 / 1
20-80160-250800-1100

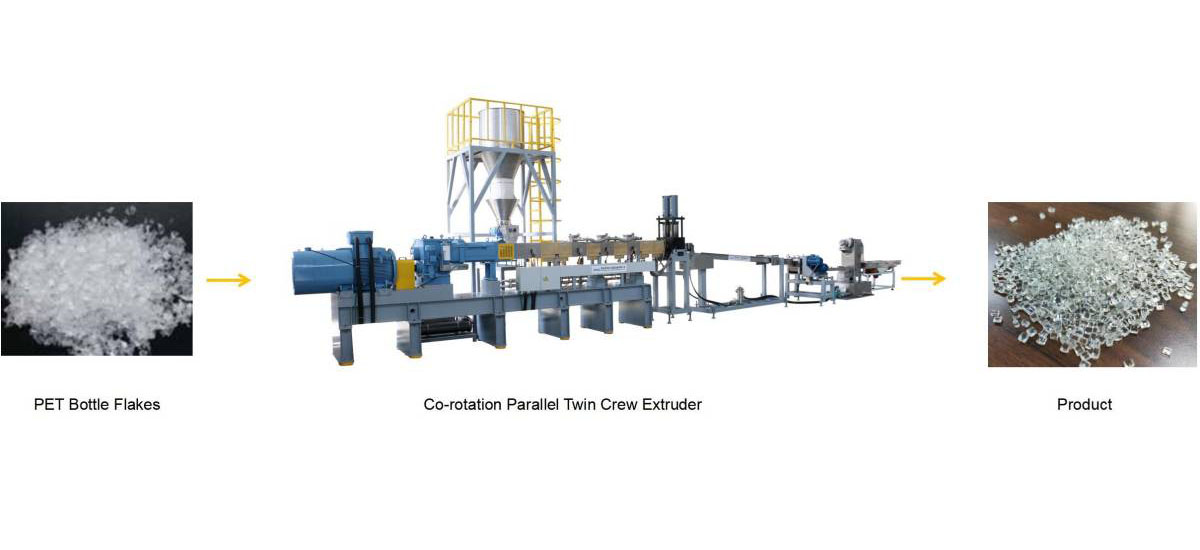

Koraci procesa

napredak(1)-1

Pošiljke

pakiranje

Razmotati
